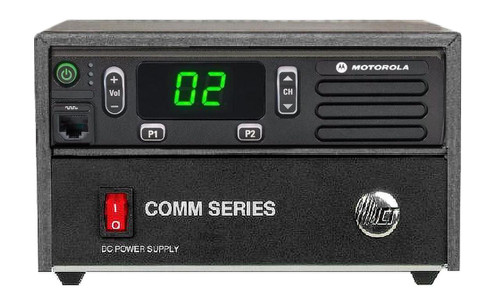

ICT12-20-MOT14 Radio Base Station Kit for Motorola / Vertex

ICT12-20-MOT14 Radio Base Station Kit for Motorola / Vertex

ICT

SKU:
ICT12-20-MOT14
Brand: ICT
Condition:
New
Shipping:
Calculated at Checkout
Manufacturer Part #:
ICT12-20-MOT14
INPUT VOLTAGE RANGE:
90- 130 VAC
INPUT FREQUENCY RANGE:
50-60 HZ
OUTPUT VOLTAGE:
13.8 VDC =/- 150 MV
OUTPUT CURRENT:
17.0 AMPS
OUTPUT CURRENT PEAK:
20.0 AMPS
CURRENT LIMITING:
20.5 AMPS
LINE REGULATION:
0.20%
LOAD REGULATION:
0.85%
OUTPUT RIPPLE:
25 MV RMS
EFFICIENCY:
85%
FUSE:
5 AMP
OPERATING TEMPERATURE:
-50 F TO 125 F / -46 C TO 52 C
WEIGHT:
4.9 LBS
$199.00

Please choose options for all selected products

Product Description

ICT12-20-MOT14 Radio Base Station Kit for Motorola / Vertex



The ICT12-20-MOT14 incorporates the ICT12-20 switching power supply factory assembled with the ICT-MOT14 base station cover. The ICT12-20-MOT14  complete station provides a sleek, compact mobile radio base station housing.



The ICT Comm Series switching power supplies deliver continuous, trouble-free operation and incorporate extra filtering, providing a virtually noise-free environment for a wide range of communications equipment and accessories. The low profile design features the standard footprint for mobile radios. The units use a high efficiency MOSFET design and include current limiting and fuse protection. Output is provided by terminal block connector.



Compatible with Motorola XPR4500, XPR4550, XPR4580 and Vertex VXD-7200 mobile radios



Included in ICT12-20-MOT14:





Documents

ICT Comm Series Power Supplies Specifications ICT Comm Series Data Sheet

ICT Radio Cover Guide

Other Details

INPUT VOLTAGE RANGE 90- 130 VAC
INPUT FREQUENCY RANGE 50-60 HZ
OUTPUT VOLTAGE 13.8 VDC =/- 150 MV
OUTPUT CURRENT 17.0 AMPS
OUTPUT CURRENT PEAK 20.0 AMPS
CURRENT LIMITING 20.5 AMPS
LINE REGULATION 0.20%
LOAD REGULATION 0.85%
OUTPUT RIPPLE 25 MV RMS
EFFICIENCY 85%
FUSE 5 AMP
OPERATING TEMPERATURE -50 F TO 125 F / -46 C TO 52 C
WEIGHT 4.9 LBS
