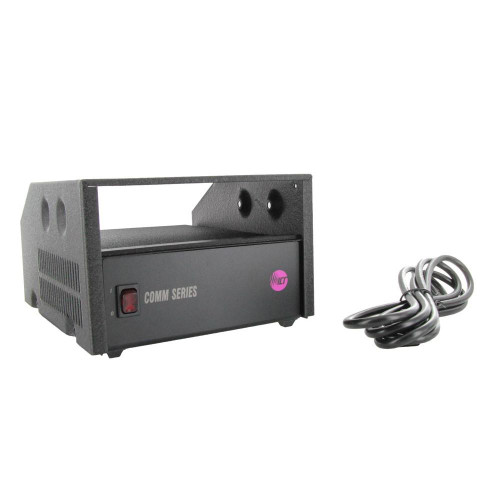

ICT12-12-VTX6 Radio Base Station Kit for Vertex

ICT12-12-VTX6 Radio Base Station Kit for Vertex

ICT

SKU:
ICT12-12-VTX6
Brand: ICT
Condition:
New
Shipping:
Calculated at Checkout
Manufacturer Part #:
ICT12-12-VTX6
INPUT VOLTAGE RANGE:
100-130VAC
INPUT FREQUENCY RANGE:
50-60 HZ
OUTPUT VOLTAGE:
13.8 VDC +/- 150 MV
OUTPUT CURRENT:
25.0 AMPS
OUPUT CURRENT PEAK:
12.0 AMPS
LINE REGULATION:
0.20%
LOAD REGULATION:
0.80%
OUTPUT RIPPLE:
< 60mV p-p
EFFICIENCY:
85%
OPERATING TEMPERATURE:
-50 F TO 125 F / -46 C TO 52 C
WEIGHT:
4.9 LBS
$149.00

Please choose options for all selected products

Product Description

ICT12-12-VTX6 Radio Base Station Kit for Vertex



The ICT12-12-VTX6 incorporates the ICT12-12 switching power supply factory assembled with the ICT-VTX6 base station cover. The ICT12-12-VTX6 base station kit provides a sleek, compact mobile radio base station housing, individually customized to compatible Vertex mobile radios.



The ICT Comm Series switching power supplies deliver continuous, trouble-free operation and incorporate extra filtering, providing a virtually noise-free environment for a wide range of communications equipment and accessories. The low profile design features the standard footprint for mobile radios. The units use a high efficiency MOSFET design and include current limiting and fuse protection. Output is provided by terminal block connector.



Included in ICT12-12-VTX6:



Compatible with Vertex VX2100, VX2200, EVX5300, EVX5400 series mobile radios

Documents

ICT Comm Series Power Supplies Specifications ICT Comm Series Data Sheet

ICT Radio Cover Guide

Other Details

INPUT VOLTAGE RANGE 100-130VAC
INPUT FREQUENCY RANGE 50-60 HZ
OUTPUT VOLTAGE 13.8 VDC +/- 150 MV
OUTPUT CURRENT 25.0 AMPS
OUPUT CURRENT PEAK 12.0 AMPS
LINE REGULATION 0.20%
LOAD REGULATION 0.80%
OUTPUT RIPPLE < 60mV p-p
EFFICIENCY 85%
OPERATING TEMPERATURE -50 F TO 125 F / -46 C TO 52 C
WEIGHT 4.9 LBS
