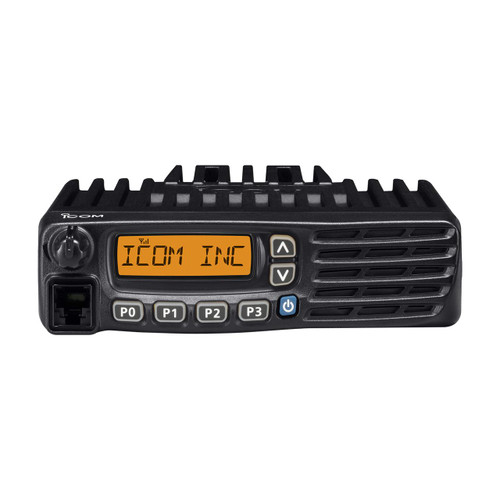

ICOM IC-F5121D Series VHF Digital / Analog Mobile Radios
The IC-F5121D series is a magnificent transceiver from the house of Icom transceiver. It is specially designed to provide you everything that you can get from a business radio. The device features IDAS digital mode operation which makes it compatible with IDAS multi-site conventional and IDAS single-site trunking. Thus, it offers several programmable functions like push-to-talk ID, status, call alert, GPS data, emergency, remote monitor, stun, kill, revive, digital voice scrambler, short data message and radio check.
The in-built two-tone, five-tone and MDC 1200 signaling in the analog mode of the radio facilitates selective calling, silent stand-by while other are talking, convenient function programming to and easy monitoring to one or two priority channels. Its Lone worker function provides the information regarding the absence of operator to the co-worker with beep and emergency signal transmission.
The radio offers copious room for company growth with its 128 channel capacity which can be easily managed under eight memory zones. It is easily operable with programmable large buttons and LCD display. The back-lighted, eight-character LCD display allows you to use the device even in poor lit environment. It comes equipped with 4 watts typ. front-mounted speaker which delivers full spectrum audio inside a vehicle. The digital modulation further helps enhance received voice quality.
This excellent land mobile provides digital and analog mixed mode operation and deliver great performance irrespective of the atmosphere. It is perfect for use even in roughest environment. The radio is made from MIL standard 810 F tested polycarbonate front panel and rugged aluminum die-cast chassis. You can use a suitable handy microphone from the available five levels of microphone grain which further adds to clearer transmission.
Features :
- Sturdy construction
- Front-mounted speaker: 4W typ.
- Powerful performance
- Delivers crystal clear sound and speech clarity
- Digital and analog mixed mode operation
- IDAS multi-site conventional and IDAS single-site trunking
- GPS compatibility
- Wide LCD display: 8 character and back-lighted
- Large programmable buttons
- In-built 2-tone, 5-tone and MDC 1200 signaling
- CTCSS/DTCS encode and decoder, only for analog
- Auto-dial memories with 8 DTMF
- Channel capacity: 128
- Individual or group call
- Programmable microphone hanger action
- Optional DTMF microphone (HM-152T)
- Programmable PC
- Power-On with a password function
- Time-out-timer
- Talk around function
- Forced narrow function; only for analog
Included with IC-F5121D 51 :
Documents
Other Details
Frequency coverage
136-174 MHz
Number of channels
128 channels (8 zones)
Type of emission
16k0F3E, 11K0F3E, 4K00F1E/F1D
Channel spacing
6.25/15/30kHz, 6.25/12.5/25kHz
PLL channel step
2.5 kHz, 3.125 kHz (VHF)
Power supply requirement
13.6V DC
Antenna impedance
13.6V DC
Antenna impedance
5OΩ (SO-239)
Operating temperature range
-30°C to +60°C; -22°F to +140°F (radio only)
Current drain, Tx High (50W/45W)
10A
Rx Max. audio
1.2AA
Standby
300mA
Dimensions (proj. not included) (W×H×D)
150×40×167.5mm; 5.91×1.57×6.59in
Weight
1.1kg; 2.4lb
Output power (at 13.6V DC)
50W, 25W, 5W (hi, L2, L1)
Max. frequency deviation
±5.0 kHz (wide) ±2.5 kHz (narrow)
Frequency stability
±1.0ppm
Spurious emissions
72dB min., 70dB min.
FM Hum and noise
46/40dB typ. (Wide/Narrow)
Audio harmonic distortion (AF 1kHz 40% deviation)
3% typ.
External microphone connector
600Ω (8-pin modular)
Sensitivity (at 12dB SINAD) (at 5% BER)
0.25μV typ. 0.18μV typ.
Adjacent channel selectivity
80/70dB typ. (W/N), 65dB typ. (digital)
Spurious response rejection
70dB min.
Intermodulation rejection
75dB typ. (W/N) 70dBμV emf typ. (digital)
Hum and noise
45/40dB typ. (W/N)
Audio output power (at 5% distortion)
4 W typ.
External speaker connector
2-conductor 3.5 (d) mm (1⁄8")⁄8Ω
