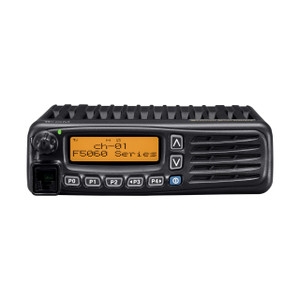

ICOM F5061D 61 RR Series VHF Mobile Radio with Railroad Firmware

ICOM F5061D 61 RR Series VHF Mobile Radio with Railroad Firmware

ICOM

SKU:
ICOM F5061D 61 RR
Brand: ICOM
Condition:
New
Shipping:
Calculated at Checkout
Manufacturer Part #:
F5061D 61 RR
Frequency range:
136–174 MHz
Number of channels:
512 channels/ 128 zones
Channel spacing:
12.5/25 kHz, 15/30 kHz 6.25 kHz (option)
PLL channel step:
2.5 kHz, 3.125 kHz
Antenna impedance:
50Ω
Operating Temp. range:
–30°C to +60°C –22°F to +140°F
Power supply requirement:
13.6V DC nominal
Current drain (approx) Tx:
50W/45W 14.0A
Rx:
Max. audio 300mA
Current drain (approx):
Stand-by 300mA
Dimensions (W×H×D) (projections not included):
160×45×150 mm 65⁄16×125⁄32×529⁄32 in
Weight (approx.):
1.31kg; 2.9lb
Output power (approx):
50W
Max. frequency deviation:
±5.0/2.5 kHz (Wide/Narrow)
Frequency error:
±1.0ppm
Spurious emissions:
75dB typ.
FM Hum and Noise:
45/40dB typ. (Wide/Narrow)
Adjacent channel power:
70/60dB min. (Wide/Narrow)
Audio harmonic distortion:
3% typ. (40% deviation)
Modulation limiting:
70–100% of Max. deviation
Ext. microphone impedance:
600Ω (8-pin modular)
Sensitivity (12dB SINAD):
0.25μV typ.
Squelch sensitivity:
0.25μV typ. (at threshold)
Adjacent channel selectivity:
85/75dB typ. (Wide/Narrow)
Spurious response:
90dB typ.
Intermodulation:
77dB typ.
Hum and noise ratio:
50/45dB typ. (Wide/Narrow)
Audio output power:
4W typ. at 10% distortion with a 4Ω load
External speaker connector:
2-conductor 3.5 (d) mm (1⁄8″) /4Ω
MSRP: $875.00
$735.00
$625.00
(You save $250.00 )

Please choose options for all selected products

Product Description

ICOM F5061D 61 RR Series VHF Mobile Radio with Railroad Firmware





50W mobile IDAS radio with special firmware installed specifically for Railroad Industry



Includes:

  • Microphone (HM-148T)
  • Mounting bracket
  • DC Power Cable
  • Key assign stickers
  • Owner’s manual



The Icom F5061D land mobile features conventional, multiple trunk from iDAS mutli-site operation. It is best suitable for mobile and base stations due to the advanced multi-mode operations, versatile installation and enhanced scanning. The RR series is also made with features for railroad communications in mind.



Features:

  • Special firmware installed for railroads
  • Advanced multi-mode operations
  • Multiple trunk
  • Enhanced scanning
  • Speaker: 4W, front-mounted
  • Multiple two-tone, five-tone, CTCSS, DTCS, MDC 1200 signaling
  • High contrast LCD
  • Detachable front panel
  • Rugged construction
  • Die-cast chassis and polycarbonate front panel
  • Wide frequency coverage
  • LTR conventional mode
  • Group or selective call
  • Voting operation for signal strength detection
  • Integral inversion-type voice scrambler
  • ACC connector for compatible external devices
  • 8 DTMF autodial memories and ANI function with DTMF
  • Radio stun and kill functions
  • Surveillance function temporarily turns off the LED backlight and beep sound
  • Convenient key assign sticker is supplied
  • ...and more





The integral MDC 1200 signaling with ANI provides various functions like emergency call, selective call, push-to-talk ID, received ID, group calls, message, stun, revive, and call log. It is easily operable with high contrast LCD with programmable settings and detachable front panel. The 4W front-mounted speaker deliver acoustic precision and an in-built audio compander further helps deliver full spectrum sound quality.

This radio covers wide frequency range. It has in-built multi two-tone, five-tone and CTCSS and DTCS encoder, decoder signaling which helps deliver great performance. The enhanced scanning with programmable transmission channel further improves its efficiency.



Documents

ICOM IC-F5061D Series VHF Brochure

ICOM IC-F5061D Series VHF Idas Product Brochure

ICOM F5061D Series VHF Compatible Model

Other Details

Frequency range 136–174 MHz
Number of channels 512 channels/ 128 zones
Channel spacing 12.5/25 kHz, 15/30 kHz 6.25 kHz (option)
PLL channel step 2.5 kHz, 3.125 kHz
Antenna impedance 50Ω
Operating Temp. range –30°C to +60°C –22°F to +140°F
Power supply requirement 13.6V DC nominal
Current drain (approx) Tx 50W/45W 14.0A
Rx Max. audio 300mA
Current drain (approx) Stand-by 300mA
Dimensions (W×H×D) (projections not included) 160×45×150 mm 65⁄16×125⁄32×529⁄32 in
Weight (approx.) 1.31kg; 2.9lb
Output power (approx) 50W
Max. frequency deviation ±5.0/2.5 kHz (Wide/Narrow)
Frequency error ±1.0ppm
Spurious emissions 75dB typ.
FM Hum and Noise 45/40dB typ. (Wide/Narrow)
Adjacent channel power 70/60dB min. (Wide/Narrow)
Audio harmonic distortion 3% typ. (40% deviation)
Modulation limiting 70–100% of Max. deviation
Ext. microphone impedance 600Ω (8-pin modular)
Sensitivity (12dB SINAD) 0.25μV typ.
Squelch sensitivity 0.25μV typ. (at threshold)
Adjacent channel selectivity 85/75dB typ. (Wide/Narrow)
Spurious response 90dB typ.
Intermodulation 77dB typ.
Hum and noise ratio 50/45dB typ. (Wide/Narrow)
Audio output power 4W typ. at 10% distortion with a 4Ω load
External speaker connector 2-conductor 3.5 (d) mm (1⁄8″) /4Ω
