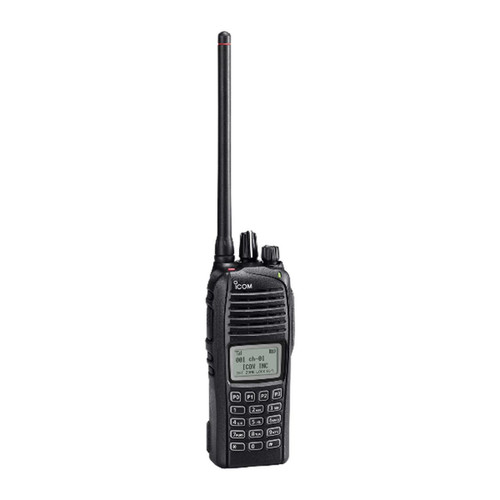

ICOM F3261DT RR VHF Digital/Analog Railroad Firmware Installed

ICOM

Call for pricing

SKU:
ICOM F3261DT RR
Brand: ICOM
Condition:
New
Manufacturer Part #:
F3261DT 35 RR
Railroad Firmware Installed:
Yes
Frequency Coverage:
136-147MHz
Number of channels:
512 channels / 128 zones
Type of emission:
11K0F3E / 4K00F1E / F1D
Channel spacing:
12.5 / 6.25kHz
Power supply requirement:
7.5VDC nominal
Antenna impedance:
50Ω
Operating temperature range:
–30°C to +60°C,–22°F to +140°F
Dimensions (with BP-232N) ,(projections are not included):
54 (W) ×142.7 (H) ×39.5 (D) mm
Output power:
5W, 2W, 1W, (Hi, L2, L1)
Max. frequency deviation:
±2.5 kHz
Frequency stability:
±1.0ppm
Spurious emissions:
75dB min.
FM Hum and Noise:
40dB typ.
Audio harmonic distortion:
3% typ. (AF 1kHz 40% deviation)
FSK error:
5% max.
External microphone connector:
2.2kΩ (14-pin multi-connector)
Sensitivity:
Analog: 0.25μV typ. (at 12dB SINAD),Digital: 0.20μV typ. (at 5% BER)
Adjacent channel selectivity:
68dB typ.
Spurious response rejection:
70dB min.
Intermodulation rejection:
74dB typ.
Hum and noise ratio:
40db typ.
Audio output power:
800mW typ. (at 5% distortion with an 8Ω load)
External speaker connector:
14-pin multi-connector/8Ω

Call for pricing

Please choose options for all selected products

Product Description

ICOM F3261DT RR VHF Digital/Analog Railroad Firmware Installed





Type-D single site trunking with installed firmware for Railroad industry - Digital enhanced handheld radio that is waterproof and features built in GPS



Features:

  • Special railroad firmware installed
  • Full Keypad
  • 512 memory channels with 128 zones
  • 5w output power
  • 136-174 MHz VHF
  • Individual/group call
  • Individual ID and talkgroup ID memories
  • Status message
  • SDM (Short Data Message)
  • GPS
  • Stun, kill and revive
  • Radio check
  • Remote monitor
  • Call alert
  • Call log
  • Emergency
  • Digital voice scrambler
  • Block decode
  • RAN (Radio Access Number)
  • ...and more



The F3261DT 35 RR transceiver has a built-in BTL amplifier that doubles the output. It has a large 40mm speaker that delivers loud and clear sound, which allows you to listen clearly in noisy environments. It provides protection against dust and water. It is fully waterproof up to 1m depth of water and that too for 30 long minutes.



2-Tone and 5-Tone signaling give you selective calling, quiet stand-by and other convenient functions. The radio stun and kill functions disable a radio over the air and the revive function restores the stunned radio. The built-in MDC signaling provides the following selective calling and ANI features. The F3261D can detect both analog and IDAS conventional signals and automatically selects the transmission mode to reply to the received call.



F3261DT 35 RR even has a built-in GPS receiver that tells your exact location to other IDAS radios and dispatch stations. It has this unique Man Down Function which automatically sends an emergency signal when this device is left in a horizontal position for a certain duration of time. The lone worker feature in it also sends an emergency signal when it is not used for a certain period of time.



Includes:



Other Details

Railroad Firmware Installed Yes
Frequency Coverage 136-147MHz
Number of channels 512 channels / 128 zones
Type of emission 11K0F3E / 4K00F1E / F1D
Channel spacing 12.5 / 6.25kHz
Power supply requirement 7.5VDC nominal
Antenna impedance 50Ω
Operating temperature range –30°C to +60°C,–22°F to +140°F
Dimensions (with BP-232N) ,(projections are not included) 54 (W) ×142.7 (H) ×39.5 (D) mm
Output power 5W, 2W, 1W, (Hi, L2, L1)
Max. frequency deviation ±2.5 kHz
Frequency stability ±1.0ppm
Spurious emissions 75dB min.
FM Hum and Noise 40dB typ.
Audio harmonic distortion 3% typ. (AF 1kHz 40% deviation)
FSK error 5% max.
External microphone connector 2.2kΩ (14-pin multi-connector)
Sensitivity Analog: 0.25μV typ. (at 12dB SINAD),Digital: 0.20μV typ. (at 5% BER)
Adjacent channel selectivity 68dB typ.
Spurious response rejection 70dB min.
Intermodulation rejection 74dB typ.
Hum and noise ratio 40db typ.
Audio output power 800mW typ. (at 5% distortion with an 8Ω load)
External speaker connector 14-pin multi-connector/8Ω
