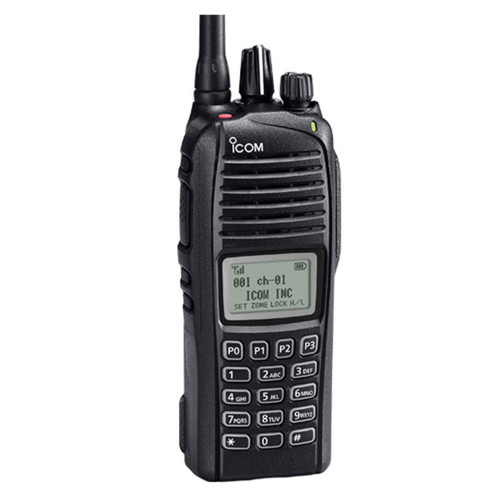

ICOM F3261DT NI Series VHF Digital/Analog nonincendive rated
- SKU:
- ICOM F3261DT NI
Brand:
ICOM
- Condition:
- New
- UPC:
- Shipping:
- Calculated at Checkout
- Manufacturer Part #:
- F3261DT NI
- Frequency Coverage:
- 136-147MHz
- Number of channels:
- 512 channels / 128 zones
- Type of emission:
- 11K0F3E / 4K00F1E / F1D
- Channel spacing:
- 12.5 / 6.25kHz
- Power supply requirement:
- 7.5VDC nominal
- Antenna impedance:
- 50Ω
- Operating temperature range:
- –30°C to +60°C,–22°F to +140°F
- Dimensions (with BP-232N) ,(projections are not included):
- 54 (W) ×142.7 (H) ×39.5 (D) mm
- Output power:
- 5W, 2W, 1W, (Hi, L2, L1)
- Max. frequency deviation:
- ±2.5 kHz
- Frequency stability:
- ±1.0ppm
- Spurious emissions:
- 75dB min.
- FM Hum and Noise:
- 40dB typ.
- Audio harmonic distortion:
- 3% typ. (AF 1kHz 40% deviation)
- FSK error:
- 5% max.
- External microphone connector:
- 2.2kΩ (14-pin multi-connector)
- Sensitivity:
- Analog: 0.25μV typ. (at 12dB SINAD),Digital: 0.20μV typ. (at 5% BER)
- Adjacent channel selectivity:
- 68dB typ.
- Spurious response rejection:
- 70dB min.
- Intermodulation rejection:
- 74dB typ.
- Hum and noise ratio:
- 40db typ.
- Audio output power:
- 800mW typ. (at 5% distortion with an 8Ω load)
- External speaker connector:
- 14-pin multi-connector/8Ω
