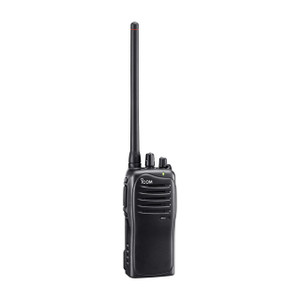

ICOM F3011 Series VHF Portable Radios

ICOM

Discontinued

SKU:
ICOM F3011
Brand: ICOM
Condition:
New
Manufacturer Part #:
F3011
Frequency Coverage:
IC-F3011 136-174 MHz
Number of Channels:
16 channels
Channel Spacing:
12.5 KHz, 15/30 kHz
Antenna Impedance:
50OΩ
FM Hum and Noise:
46/40dB typ. (W/N)
Output Power (at 7.2V DC):
5W (VHF), 4W (UHF)
Frequency Stability:
±2.5ppm
Spurious Emissions:
80dBc typ.
Sensitivity:
0.25 µV (typ.) at 12 dB SINAD
Intermodulation Rejection:
74dB typ.
Squelch Sensitivity:
0.25μV typ. (at threshold)
External Speaker Connector:
2-conductor 3.5 (d) mm (1⁄8")⁄8Ω
Adjacent Channel Power:
VHF 80/70dB typ. and UHF 75/68dB typ.
Max. Frequency Deviation:
±5.0 kHz (at 25 kHz), ±2.5 kHz (at 12.5 kHz)
Hum and Noise VHF:
50/45dB typ. (W/N)
Hum and Noise UHF:
45/40dB typ. (W/N)
Audio Output Power (at 7.2V DC):
500mW (typical at 5% distortion with an 8Ω load)
PLL Channel Step:
2.5 kHz, 3.125 kHz (VHF) and 5 kHz, 6.25 kHz (UHF)

Discontinued

Please choose options for all selected products

Product Description

ICOM F3011 Series VHF Portable Radios





Discontinued - Replaced by F1000



The ICOM's IC-F3011 series VHF Transceiver is a portable radio mobile specially designed for use in rough and tough atmosphere. The radio features aluminum die-cast chassis ensuring its durability and thus, long running life. The MIL-STD 810 specifications and IP54 rating is given to this radio after testing its quality. So, it promises to be waterproof and dust-proof adding to its rugged construction. The lightweight and compact size makes it easy to carry along for usage in various environments.



Includes :







Features :

  • Reliable transceiver for use in various environments
  • Aluminum die-cast chassis
  • MIL-STD 810 specifications and IP54 rating
  • Portable, lightweight and compact size
  • Simple and easily operable
  • Priority scan
  • Standard lithium-ion battery, BP-23N
  • 16 hours continuously running battery life
  • CTCSS/DTCS tone encoder/decoder
  • Timer to display time out
  • 3-color LED with red green orange color
  • PC programmable
  • Alert for low battery
  • Tall around feature
  • Optional VOX headset
  • Power saver





This transceiver is very simple and easy to operate with its three buttons, a channel knob with 16 positions and one volume knob. You can even handle it and operate it while wearing gloves. It start auto scanning as and when the radio is turned on. The priority scan function allows monitoring the priority channel and sequentially scans all the programmed channels.



The integral CTCSS and DTCS capabilities facilitates standard for accessing a repeater or to organize your own talk group for quiet pause. It comes complete with standard battery BP-23N, a highly efficient 2000mAh lithium-ion battery pack. This battery can run continuously for 16 hours. The BC-160, rapid desktop charger and BC-145, AC adapter are also supplied with the radio mobile. The charger can fully charge the BP-232N in approximately three hours.





Other Details

Frequency Coverage IC-F3011 136-174 MHz
Number of Channels 16 channels
Channel Spacing 12.5 KHz, 15/30 kHz
Antenna Impedance 50OΩ
FM Hum and Noise 46/40dB typ. (W/N)
Output Power (at 7.2V DC) 5W (VHF), 4W (UHF)
Frequency Stability ±2.5ppm
Spurious Emissions 80dBc typ.
Sensitivity 0.25 µV (typ.) at 12 dB SINAD
Intermodulation Rejection 74dB typ.
Squelch Sensitivity 0.25μV typ. (at threshold)
External Speaker Connector 2-conductor 3.5 (d) mm (1⁄8")⁄8Ω
Adjacent Channel Power VHF 80/70dB typ. and UHF 75/68dB typ.
Max. Frequency Deviation ±5.0 kHz (at 25 kHz), ±2.5 kHz (at 12.5 kHz)
Hum and Noise VHF 50/45dB typ. (W/N)
Hum and Noise UHF 45/40dB typ. (W/N)
Audio Output Power (at 7.2V DC) 500mW (typical at 5% distortion with an 8Ω load)
PLL Channel Step 2.5 kHz, 3.125 kHz (VHF) and 5 kHz, 6.25 kHz (UHF)
